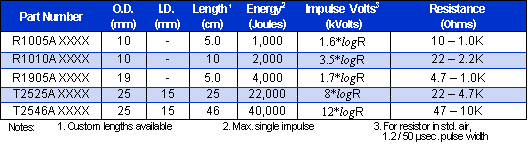

Ceramic Rod and Tube resistors offer higher average power dissipation while retaining the Cercomp advantages of high surge energy, high voltage withstand, and non-inductance. These ceramic composite resistors are especially useful in RF applications such as transmitters and modulators, where the tube configuration provides more effective convection cooling. The standard termination is a metalized ferrule. Alternatives such as radial tabs and high voltage ferrules allow for mounting options or enhanced performance. Optional coatings are available to optimize performance in air, oil or other dielectrics.
Mounting options
Rod and Tube resistors are available in several different termination styles, as shown below. High Voltage Connector Caps are available to facilitate stress-free mounting of ferrule-ended Rod and Tube style resistors.
Click pictures for larger images
