High Energy Carbon Ceramic Rod and Tube Resistors
Click for larger image

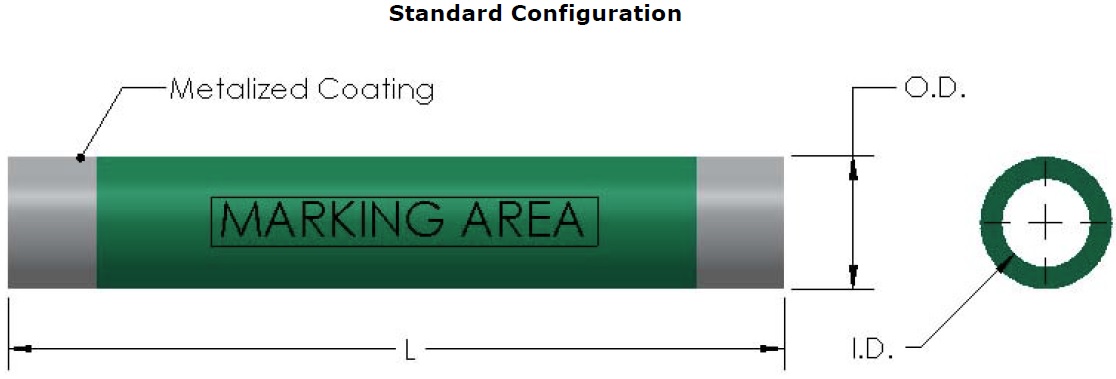

High-Energy Rod and Tube resistors are especially useful in applications requiring maximum energy density in a tube resistor. The standard termination is a metalized ferrule. Alternatives such as radial tabs and high voltage ferrules allow for mounting options or enhanced performance. Available configuration options optimize performance in air, oil or other dielectric.

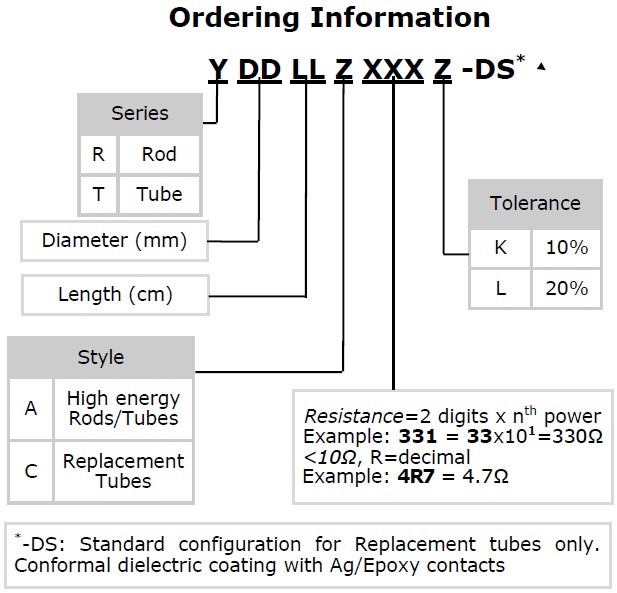

Part Number
O.D.
(mm)
I.D.
(mm)
L
(cm)
Energy 1
(J)
Power 2
(W)
Impulse
(kV)
Resistance
Range ( Ω )
R1005AXXXX 10 —— 5.0 1,000 10 1.6 * log R 10—1.0K
R1010AXXXX 10 —— 10 2,000 20 3.0 * log R 22 — 2.2K
R1908AXXXX 19 —— 7.5 6,000 24 4.4 * log R 10 — 2.2K
T2515AXXXX 25 15 15 11,000 55 6.5 * log R 15 — 2.2K
T2525AXXXX 25 15 25 22,000 90 8.0 * log R 22 — 4.7K
T2546AXXXX 25 15 46 45,000 150 12.0 * log R 47 — 10.0K
T5030AXXXX 50 35 30 94,000 200 8.5 * log R 15 — 1.5K
T5046AXXXX 50 35 45 140,000 300 12.0 * log R 22 — 2.2K
Notes: 1. Single Impulse for approx. 125ºC. T 2. Rated@25ºC. Deratelinearly to 0W @ 200ºC.




Mounting options

Rod and Tube resistors are available in several different termination styles, as shown below. High Voltage Connector Caps are available to facilitate stress-free mounting of ferrule-ended Rod and Tube style resistors.

Click pictures for larger images
